Today, the construction of modern building projects, especially in the health care sector, is so complex as a variety of building systems are to be integrated into a confined space. In contrast to normal buildings, a hospital consists of numerous structural, architectural, and MEPFS systems and other health care related building systems. Due to their great complexity, all these systems require extensive coordination among themselves.

St. Luke’s Medical Center North Hospital Building (SLMC NHB) Project would like to have the majority of the systems listed above running above the ceiling in Concealed Above Ceiling (CAC) spaces. There are numerous building systems that need to function within these limited spaces and hence require extensive coordination among the various building disciplines.

Building Information Modeling (BIM) plays important roles in the construction processes of the SLMC NHB project as supported by SLMC, ARUP, other consultants, and D.M. Consunji, Inc. (DMCI). BIM for healthcare supports effective, meaningful, successful information modeling, for healthcare only occurs when everyone works together as a team. The following are examples of how the consultants and the contractor use BIM to complete the project successfully.

WHAT IS BUILDING INFORMATION MODELING (BIM)?

Building Information Modeling (BIM) is more than just creating a 3D model of a building. It is a collaborative and interactive digital process in which owners, designers, engineers, consultants, and contractors work together virtually to build a project before actual construction work commences.

For technically complex projects such as St. Luke’s Medical Center North Hospital Building (SLMC NHB) Project, BIM enabled the Owner, Arup, DMCI, and Subcontractors to virtually coordinate critical life-support and building systems including Backup Power, Nurse Call, Master Clock, Centralize AC and Ventilation, Centralized Water Supply System, Medical Gas systems, and other interfaced system before construction began. This proactive coordination helped identify and resolve potential conflicts early, improve constructability, and ultimately ensure that the design could be efficiently and effectively delivered on site.

St. Luke’s Medical Center North Hospital Building (SLMC NHB) 3D Render

These structural components will form the basis of the various architectural finishes including from the structural walls and roof to the various structural columns. Architectural finishes including various overhead services, such as HVAC ducts, and associated support members. Various plumbing pipe runs, and associated pipe supports, for various MEP services, including plumbing. Various cable trays and cable support systems, for electrical, telecommunications, and medical gas services, including conduits and associated raceways, for various building services. All building services equipment, including but not limited to switch rooms, generators, nurse call, fire alarm, and related associated supporting structure. Hospitals have complex systems like backup power, medical gas, nurse call, fire protection, ventilation, plumbing, and ICT. By combining these systems into one coordinated model, the project team can visualize how they interact, identify potential clashes, and evaluate solutions long before a shovel hits the ground.

Using BIM allows us to see how all of the various systems in a hospital will come together, to identify potential conflicts in a design, and to determine whether a design can be executed as intended on a construction site. Most conflicts can be identified and resolved during the coordination phase of a project. These changes are easier to implement when the construction is underway.

WHY BIM MATTERS

As there are numerous MEPFS systems competing for space above the hospital ceiling, each serving important functions and required to be concealed within the ceiling spaces. Proper coordination of these services with the structural and architectural elements is crucial. Most of the services (ducts, pipes, cable trays, electrical, medical gas, etc.) for the various building services will be located above the ceiling of the various spaces. It is therefore very important that all services for the various building services are properly coordinated in order to fit in the limited space above the ceiling without conflicting with the structural and architectural components of the building.

Conflicts between the different building services and structural/architectural elements could result in costly rework, delays, and changes to how individual services are to be installed and completed.

With BIM, the structural, architectural, and MEPFS disciplines are coordinated and potential conflicts identified before the construction phase. This enables the project team to develop solutions to problems as they arise before they become major issues on site. This way, DMCI can proceed with the construction of a building that has already been virtually constructed in the most efficient manner possible to minimize uncertainty and prevent costly changes at the field level.

The MEPFS scope of work for SLMC NHB extended beyond normal HVAC, electrical and plumbing services, incorporating specialized systems typical of very few commercial buildings. The ability to create a coordinated digital representation of all these services using BIM allowed the project teams to conduct a digital walkthrough of the ceiling spaces identifying potential clashes before any physical work was undertaken with tools.

Through multidisciplinary model coordination, potential conflicts between the following elements could be reviewed by the team:

• HVAC ducts and ventilation systems intersecting with structural elements and other building services.
• Medical gas piping competing for space with ducts, cable trays, plumbing, and fire protection systems;
• Electrical cable trays and containment requiring coordination with mechanical and plumbing services;
• Fire protection and sprinkler systems requiring appropriate locations, clearances, and coordination with ceilings and other services;
• Pneumatic tube systems requiring coordinated routing, access and interfaces with other MEPFS services.
• Reverse osmosis and specialized plumbing systems (with associated equipment locations and piping routes and for maintenance access);
• Ceiling and access-zone coordination to allow the installation of concealed services and to allow for adequate access for future inspection and maintenance.
• Equipment and service clearances especially for critical mechanical and electrical plant.
• Vertical and horizontal service routing through limited shafts, corridors and ceiling spaces.

Instead of discovering potential conflicts during construction, BIM allowed the project teams to visualize the proposed installation and work through any problems before construction started. Any conflicts, deviations or alternative routes could be discussed and resolved prior to the actual work being executed on site.

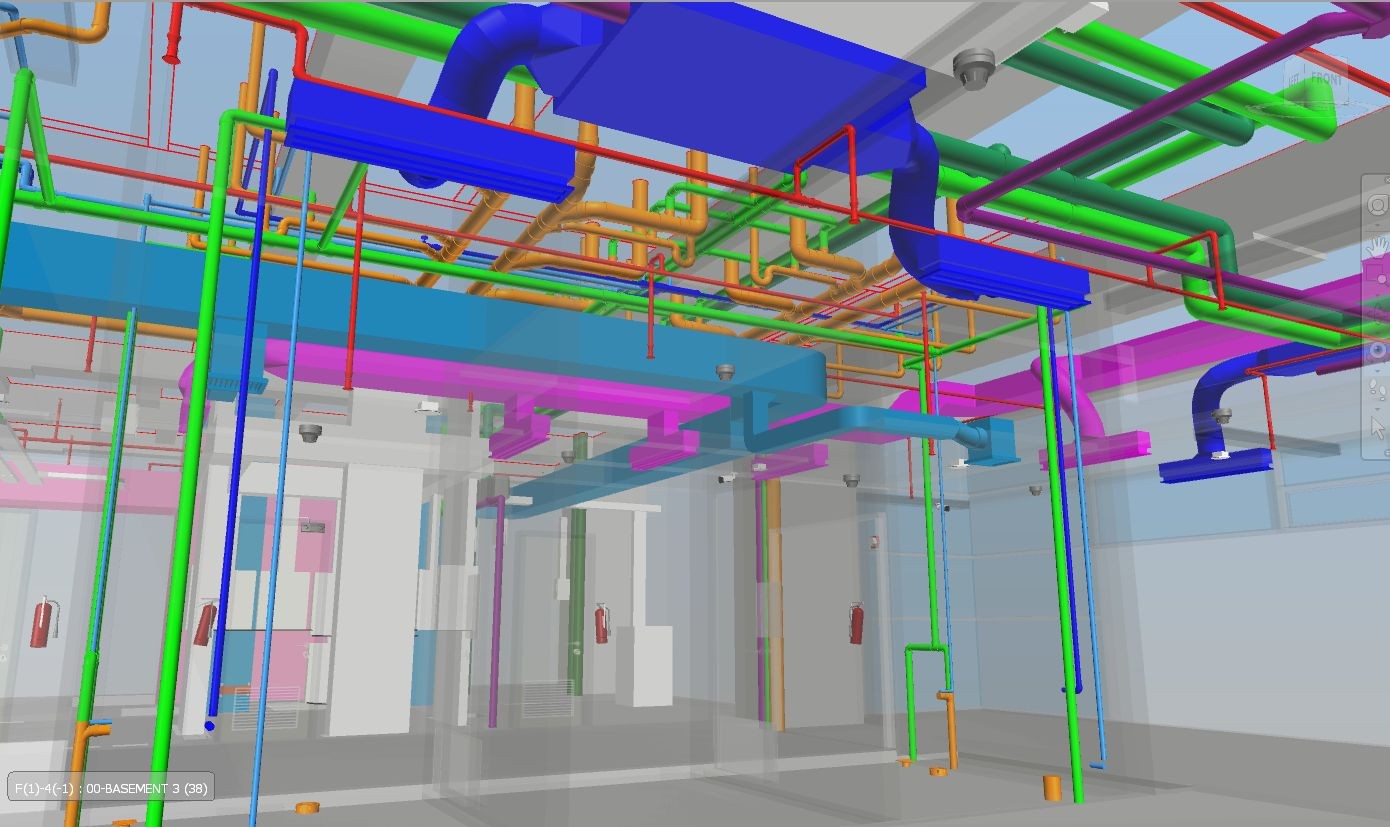

SLMC NHB Digital Walkthrough for Operating Rooms Showing layout of Hepa Fan Filter Unit, Ventilation, Fire Protection, Cable Trays, Reverse Osmosis Piping

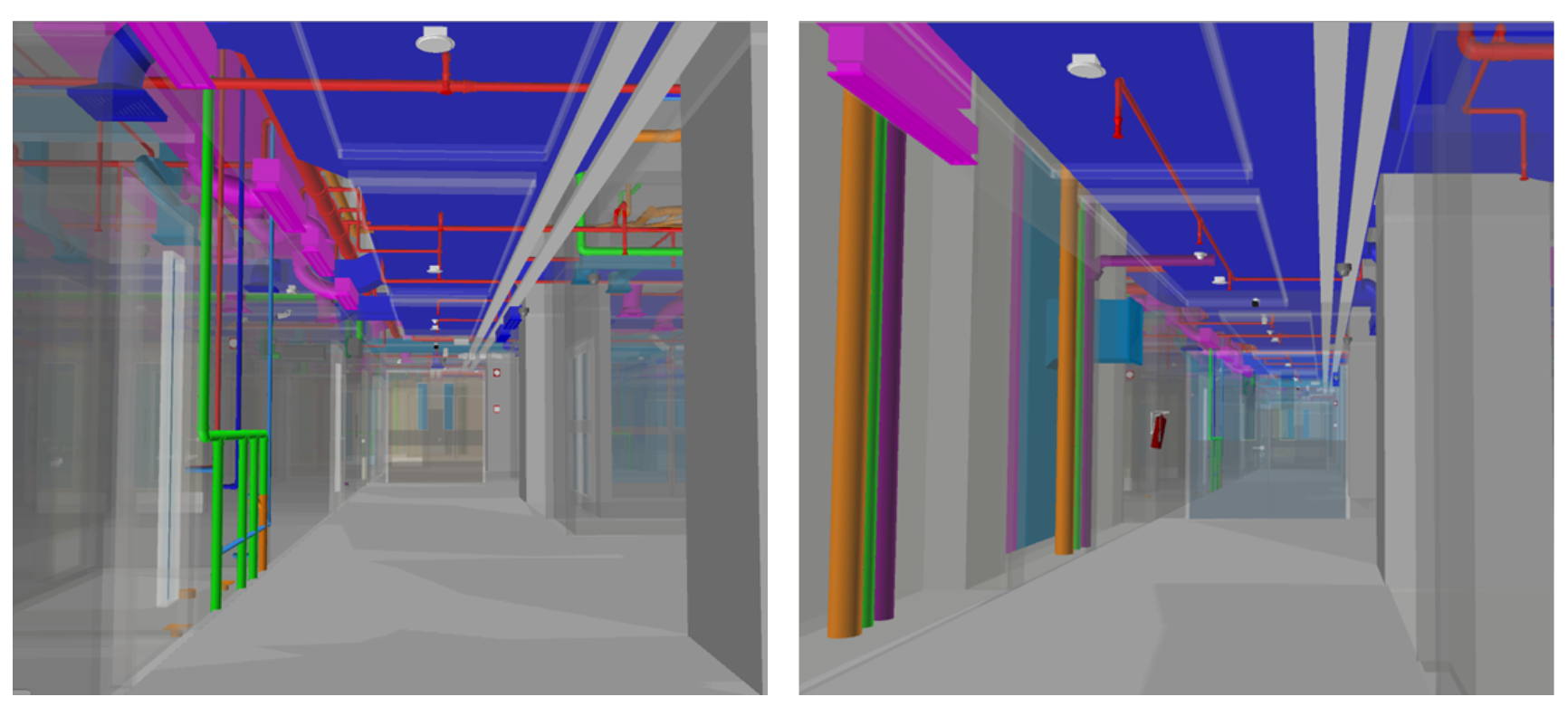

SLMC NHB Digital Walkthrough for Patient Rooms Hallways Showing lay-out of AC, Ventilation, Fire Protection, Cable Trays

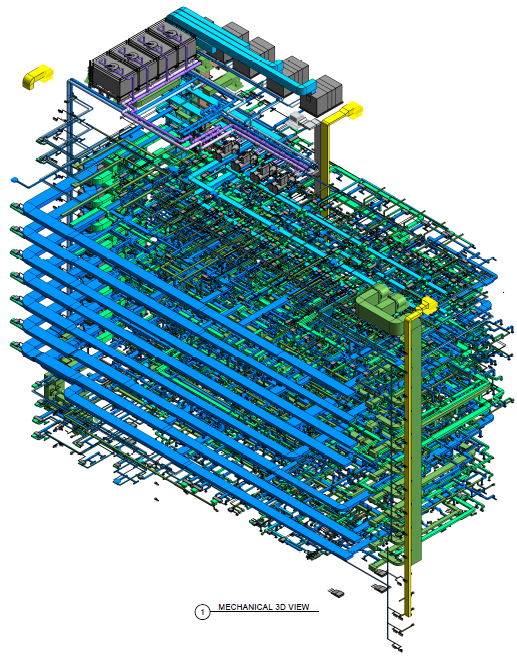

St. Luke’s Medical Center North Hospital Building (SLMC NHB) BIM 3D View of AC and Ventilation System – imagine how costly it would be to only find clashes and errors during implementation

BIM THROUGHOUT THE PROJECT LIFECYCLE

BIM is used throughout the entire project life cycle from design development to the actual construction and operation of a facility.

• Design Development

During the design development phase of the hospital project, SLMC together with ARUP (the consultants for the structural, architectural, and MEPFS disciplines) and DMCI, will coordinate their respective disciplines in a shared digital environment.

Also important is to check the work of other architects, structural engineers, and other MEPFS designers. They can review each other’s work while it is still in the design development stage.

• Pre-Construction

In the pre-construction stage, DMCI utilizes BIM in reviewing the installation sequences, equipment access, work areas, and the corresponding construction methodologies. This will help anticipate any problems that may occur and enable the proper planning of site work before the physical installation of materials and manpower.

• Construction Phase

The coordinated information provided by BIM can support the site engineer during the construction phase. Information from BIM can support the installation of structural components as well as the installation of the various MEPFS systems.

In construction, BIM can display the relevant building components in the relevant areas of the building to assist in installation. The model helps the team understand how different building components (of different trades) relate to one another, particularly in congested areas where several trades need to work within the same space.

Early identification of potential conflicts will allow the issues to be resolved before material and labor are committed to the installation. Once installed, the information will assist field personnel in performing their work in a productive manner to complete the installation as efficiently as possible with minimal rework.

• Facility Management

The use of BIM will become important for the maintenance, operation, and future development work of the facility. The BIM model will function as a digital record of the building’s systems.

BIM IN PRACTICE

BIM for SLMC NHB is practical for DMCI as it can translate the designs into buildable solutions for the project. A coordinated BIM model for a project such as SLMC NHB enables DMCI to check for items such as structural components, ducts, pipes, cable trays, medical gas lines, and other building systems within the ceiling space of a project.

By going through the installation sequence of all elements, checking for access to equipment, and resolving all situations before actually going to the site to start work, you can prevent problems from arising in the first place. An example of a conflict found prior to installation would be a number of MEPFS systems to be installed in the same ceiling space. The BIM model would enable the installation of each of the services, the conflicts found, and solutions developed prior to any physical installation taking place.

However, waiting until problems arise and resolving them as you go along can in fact be less productive, less coordinated, and lead to more changes later on. BIM will not replace the Engineer’s design and the Contractor’s experience in the execution of a project but will provide them with better information to make decisions and execute the works on the ground.

THE FUTURE OF BIM

As the technologies for digital construction continue to mature, BIM will be at the core of new construction methods and building systems.

Emerging applications include:

• 4D BIM for construction scheduling
• 5D BIM for cost management
• Digital twins for facility operations
• Drones and laser scanning for capturing and monitoring site conditions
• Artificial intelligence for design analysis and decision-making
• Cloud-based collaboration across project teams

Innovative uses of BIM are emerging, and these can link digital planning and physical construction. They will help the construction team make the right decisions throughout the lifecycle of a project.

Building systems of today’s complexity can only be planned and constructed with the aid of BIM and other building technologies. They need to be smart, safe, and sustainable.

THE BOTTOM LINE

Building Information Modeling (BIM) has transformed the way of designing and constructing complex buildings. BIM enables owners, designers, consultants, and contractors to work together on a virtual model of a building before it is physically constructed. Such collaboration minimizes conflicts, improves the constructability of a building, and facilitates its efficient execution.

BIM goes beyond just viewing your designs. It is actually a key component in the delivery of complex building projects, like the SLMC NHB project of DMCI. For the SLMC NHB development of DMCI, in close collaboration with the Owner, ARUP as the multidisciplinary engineering design consultant, and other consultants of the project, DMCI is able to better understand how the different building systems of a complex building work and address any coordination problems early on before they become problems in the field.

BIM can be used to resolve problems that can occur during the construction of complex buildings. These problems can be solved before they become physical problems, thereby enabling the successful completion of construction works.

ABOUT THE AUTHOR

Christine Ave V. Tragura, MBA, CLSSYB

Ave is a licensed Civil Engineer with over 16 years of international engineering and infrastructure experience across the construction, oil and gas, mining, manufacturing, and energy sectors in the Philippines and Singapore. She is currently serving as Digital Communications Senior Supervisor at D.M. Consunji, Inc. (DMCI).
